Hastelloy C22, also known as UNS N06022, is a nickel-chromium-molybdenum alloy that exhibits enhanced resistance to a broad spectrum of aggressive chemicals. Renowned for its exceptional protection against both oxidizing and reducing environments, it finds extensive application in sectors such as chemical processing, pharmaceuticals, pulp and paper, waste treatment, marine engineering, and pollution control systems.

Table Of Contents

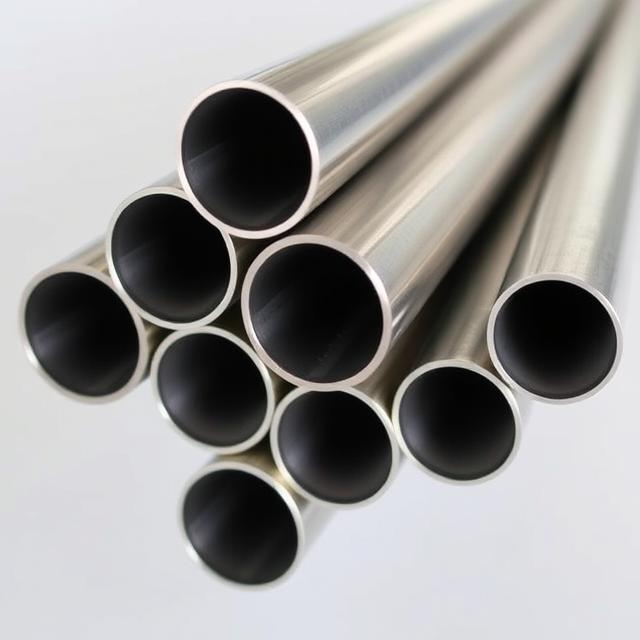

We offer Hastelloy C22 Tubing in various forms, including seamless, welded, and fabricated types. These tubes adhere to international standards such as ASTM B622 (seamless), ASTM B619 (welded), and ASTM B626 (welded and drawn). Our stock features tubes of different sizes, thicknesses, and lengths to meet the diverse needs of multiple industries. The remarkable performance of UNS N06022 is attributed to its distinctive chemical composition, which comprises high levels of nickel, chromium, molybdenum, and tungsten, providing exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking.

Hastelloy C22 Tubes Hastelloy C22 Tubes Manufacturers, Hastelloy C22 Tubes Suppliers, Hastelloy C22 Tubes Stockists, Hastelloy C22 Tubes Exporters

The Hastelloy C22 Seamless Tubes provided by Adinox Overseas are designed for high mechanical strength, superior dimensional accuracy, and impeccable surface finish. These tubes are well-suited for high-temperature and high-pressure service environments. Conversely, our Hastelloy C22 Welded Tubes serve as cost-effective alternatives that retain excellent corrosion resistance and structural integrity for low to medium pressure systems. Each tube undergoes thorough testing, including hydrostatic inspection, non-destructive testing (NDT), visual inspection, and third-party evaluations, in accordance with customer specifications.

Hastelloy C22 Tubes in India, Hastelloy C22 Tubes Manufacturers in India, Hastelloy C22 Tubes Suppliers in India, Hastelloy C22 Tubes Stockists in India, Hastelloy C22 Tubes Exporters in India

By opting for Adinox Overseas for your Hastelloy C22 Tubes need, you can rest assured to receive world-class products meeting international standards and shipped with complete documentation in the form of material test reports and inspection certifications. Driven by the principles of excellence and innovation, Adinox Overseas remains the first choice for corrosion-resistant piping solutions across the world.

Hastelloy C22 Tubes in Mumbai, Hastelloy C22 Tubes Manufacturers in Mumbai, Hastelloy C22 Tubes Suppliers in Mumbai, Hastelloy C22 Tubes Stockists in Mumbai, Hastelloy C22 Tubes Exporters in Mumbai

Specifications Of Hastelloy C22 Tubes

Hastelloy C22 Tube Standards	ASTM B622, B619, B626 / ASME SB622, SB619, SB626
Hastelloy C22 Seamless Tube Size	3.35 mm OD To 101.6 mm OD
Hastelloy C22 Welded Tube Size	6.35 mm OD To 152 mm OD
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Hastelloy C22 Tube Schedule	SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Hastelloy C22 tubing wall thickness	0.020" –0.220", (special wall thicknesses available)
Hastelloy C22 Tube Length	Single Random, Double Random, Standard & Cut length
Hastelloy C22 Tube Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Hastelloy C22 Tube Form	Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc.
Hastelloy C22 Tube Type	Seamless, ERW, EFW, Welded, Fabricated
End	Plain End, Beveled End, Treaded
Marking	All Hastelloy C22 Tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Application	Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger
Value Added Service	Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize in	Hastelloy C22 Capillary Tube & Other Odd Size Hastelloy C22 Heat Exchanger & Condenser Tubes
Test Certificate	Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection

Chemical Composition for Hastelloy C22 Tubes

Grade	C	Cr	Mo	Si	V	Fe	Ni
Hastelloy C22	0.010 max	20 – 22.5	12.5 – 14.5	0.08 max	0.35 max	2 – 6	Bal

Mechanical Properties Of Hastelloy C22 Tubes

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Application Of Industries

Power Plants

Aerospace

Refineries

Construction

Oil & Gas

Sugar

Chemical

Petrochemical
