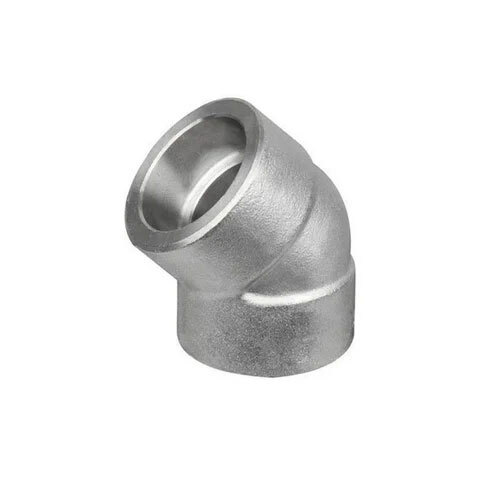

Adinox Overseas is world renowned trademark in the sector of industrial pipe fittings with wide range of forged fittings, among which it distributes the high quality Socket Weld 45 Degree Elbow. These elbows have been designed so that there is a comfortable change of direction in piping systems and that they have an amazing strength, and pressure resistance ability. These elbows are custom-designed according to ASTM A234 WPB and the universal recognition of ASME B16.11 which further meet the international standards and best suited in high-pressure lines in oil & gas, petro, power generation, and marine industries.

Table Of Contents

Our Socket Weld 45 o Elbows are made of top quality materials, i.e., UNS K03504 carbo steel, which is highly durable and has a very long life even under unfavorable conditions. The 45 degree angle can bring about a smoother transition of the flow with the least pressure drops and turbulence within the piping system. The elbows are manufactured with state of the art forging skills ensuring dimensional accuracy, great weldability and a good surface finish.

Socket Weld 45° Elbow, Socket Weld 45° Elbow Manufacturers, Socket Weld 45° Elbow Suppliers, Socket Weld 45° Elbow Stockists, Socket Weld 45° Elbow Exporters

Quality is also evident in our strong established industry standards like ASTM A234, ASME B16.11 and MSS-SP-83. These standards make our Socket Weld 45 Elbows applicable to either moderate or high temperature using all types of fluids including steam, gas and oil and even some chemical compounds. These elbows have a corrosion-resistant quality and are built durable to be applied in process piping systems, pressure vessels, and heat exchangers.

Socket Weld 45° Elbow in India, Socket Weld 45° Elbow Manufacturers in India, Socket Weld 45° Elbow Suppliers in India, Socket Weld 45° Elbow Stockists in India, Socket Weld 45° Elbow Exporters in India

As a leading Socket Weld 45° Elbow Supplier & Manufacturer, Adinox Overseas offers elbows in various sizes, wall thicknesses, and pressure ratings, including 3000#, 6000#, and 9000#. We also provide customization based on client specifications and applications. Our elbows are thoroughly inspected and tested for leak-proof performance, dimensional accuracy, and consistent metallurgical properties. Each product is delivered with a complete set of documentation including mill test certificates, third-party inspection reports, and compliance certificates.

Socket Weld 45° Elbow in Mumbai, Socket Weld 45° Elbow Manufacturers in Mumbai, Socket Weld 45° Elbow Suppliers in Mumbai, Socket Weld 45° Elbow Stockists in Mumbai, Socket Weld 45° Elbow Exporters in Mumbai

Specifications Of Socket Weld 45° Elbow

Specifications	ASTM A182, ASTM SA182
Dimension	ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size	1/8″ NB TO 4″ NB
Type	Socket Weld (S/W) & Screwed (SCRD)
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form	90 Deg Elbow, 45 Deg Elbow, Any required deg

Dimensions of Socket Weld 45° Elbow

NPS	Socket Bore	Depth Socket	Bore diameter	Socket wall thickness	Body wall thickness	Center to bottom of socket A
NPS	B	J	D	C	G	45°
1/2	21.95 21.70	10	16.6 15	4.65 4.10	3.75	11.5
3/4	27.30 27.05	13	21.7 20.2	4.90 4.25	3.90	12.5
1	34.05 33.80	13	27.4 25.9	5.70 5.00	4.55	14
1 ¼	42.80 42.55	13	35.8 34.3	6.05 5.30	4.85	17
1 ½	48.90 48.65	13	41.7 40.1	6.35 5.55	5.10	21
2	61.35 61.10	16	53.5 51.7	6.95 6.05	5.55	25
2 ½	74.20 73.80	16	64.2 61.2	8.75 7.65	7.00	29
3	90.15 89.80	16	79.5 46.4	9.50 8.30	7.60	31.5
4	115.80 115.45	19	103.8 100.7	10.70 9.35	8.55	41.5

Application Of Industries

Power Plants

Aerospace

Refineries

Construction

Oil & Gas

Sugar

Chemical

Petrochemical
