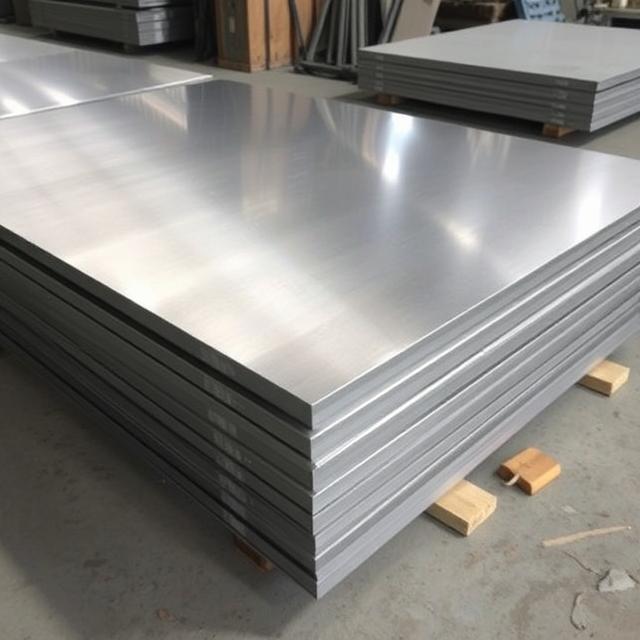

Adinox Overseas is a world renounced supplier and stockist of stainless steel 347H plates which are manufactured as per the ASTM A240 standard and the plates can be identified by the reference number UNS S34709. These stainless steel plates are highly engineered to provide excellent performance to serve in high temperatures environment as they will have perfect balance of strength, corrosion resistance, and durability. x
Stainless Steel 347H is the high carbon variation of alloy 347, which has high creep resistant and improved temperature strengths. Columbium (niobium) is included in this high-temperature stabilized austenitic stainless steel mixture, which is used to resist intergranular corrosion resulting due to exposure to high temperatures. This characteristic renders it very appropriate in services where cyclic heating and cooling is exercised. By inserting carbon to 347H, its high-temperature mechanical characteristics are enhanced hence it is a very good product in pressure vessels and applications involving a lot of heat.
Our SS 347H Plates are exceptionally resistant to oxidation and scaling to high temperatures (up to 1500 oF (816 oC). They perform well and are easy to fabricate (even in various industries), thanks to a strong formulation, and its precise finishing, making them highly weldable and formable. Each of the Stainless Steel 347H Plate at Adinox Overseas is strictly tested and accredited to be according to the international quality standards to facilitate optimum performance, structural reliability under most demanding operation environments.
Our 347H plates are produced under severe quality controls and meet the universal standards of ASTM A240, ASME SA 240, EN 10088-2 and DIN 1.4961. The certifications confirm the mechanical strength, corrosion resistance and life span of the plates. The customers prefer to work with Adinox Overseas because of our stable supply chain, competitive rates, and individual customer support which allow executing the project easily starting with its procurement and all the way through the delivery.
| ASME/ASTM Grade | ASTM A240 / ASME SA240 |
|---|---|
| Thickness | 4 to 100mm |
| Supply Length | 3000mm, 2440mm, 6000mm, 2000mm, 5800mm, etc |
| Width Available |
3000mm, 1800mm, 2000mm, 1500mm, 2500mm, 1000mm, 3500mm, 1219mm etc |
| Most Commom Finish | 2B, BA NO(8), Cold rolled sheet (CR), SATIN, HR plate , 2D |
| Surface types | etching, hair line, NO.1, sand blast, embossed, Brush, 2D, 2B, BA, NO.8, checkered, NO.4, 8K, mirror, etc |
| Available Plate Form with us | Blank (Circle), Perforated Sheet, Foils, Coils, Rolls, Plain Sheet, Flats, Strip, Shim Sheet, Chequered Plate, Ring (Flange) etc. |
| Grade | Si | C | P | Mn | S | Cr | N | Ni | Co + Ta | |
|---|---|---|---|---|---|---|---|---|---|---|
| 347H | Min | - | 0.04 | - | - | - | 17.0 | - | 9.00 | 8xC min |
| max | 1.00 | 0.10 | 0.045 | 2.00 | 0.030 | 19.0 | - | 13.00 | 1.00max |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 347H | 515 | 205 | 40 | 92 | 201 |
