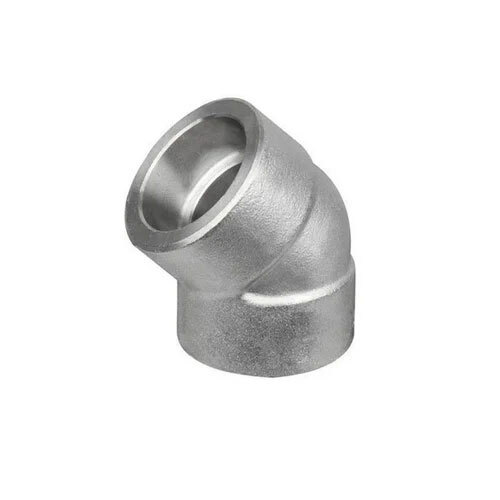

Adinox Overseas is world renowned trademark in the sector of industrial pipe fittings with wide range of forged fittings, among which it distributes the high quality Socket Weld 45 Degree Elbow. These elbows have been designed so that there is a comfortable change of direction in piping systems and that they have an amazing strength, and pressure resistance ability. These elbows are custom-designed according to ASTM A234 WPB and the universal recognition of ASME B16.11 which further meet the international standards and best suited in high-pressure lines in oil & gas, petro, power generation, and marine industries.
Our Socket Weld Threaded 45° Elbow are made of top quality materials, i.e., UNS K03504 carbo steel, which is highly durable and has a very long life even under unfavorable conditions. The 45 degree angle can bring about a smoother transition of the flow with the least pressure drops and turbulence within the piping system. The elbows are manufactured with state of the art forging skills ensuring dimensional accuracy, great weldability and a good surface finish.
Quality is also evident in our strong established industry standards like ASTM A234, ASME B16.11 and MSS-SP-83. These standards make our Socket Weld 45 Elbows applicable to either moderate or high temperature using all types of fluids including steam, gas and oil and even some chemical compounds. These elbows have a corrosion-resistant quality and are built durable to be applied in process piping systems, pressure vessels, and heat exchangers.
As a leading Threaded 45° Elbow Supplier & Manufacturer, Adinox Overseas offers elbows in various sizes, wall thicknesses, and pressure ratings, including 3000#, 6000#, and 9000#. We also provide customization based on client specifications and applications. Our elbows are thoroughly inspected and tested for leak-proof performance, dimensional accuracy, and consistent metallurgical properties. Each product is delivered with a complete set of documentation including mill test certificates, third-party inspection reports, and compliance certificates.
| Specifications | Forged 45 degree elbow |
|---|---|
| Dimension Specification | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| ASME B16.11 45 degree elbow Forged Fittings Thread | NPT, BSPT, BSPP |
| ASME B16.11 45 degree elbow FittingsType | DN15-DN1200 |
| End | Threaded, Welding, JIC |
| ASME B16.11 45 degree elbow Fittings Pressure Rating | Threaded end-2000lb/ 3000lb/ 6000lbs 45 degree elbow |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom 45 degree elbow |
| Size Range | 1/8″ NB TO 4″ NB |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| ASME B16.11 45 degree elbow Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Key markets and industries for 45 degree elbow Fittings |
|
| Application |
|
| Nominal Pipe Size (NPS) | Thread Size | Center to End (C) | Center to Center (L) | Radius (R) | Weight (Kg) |
|---|---|---|---|---|---|
| 1/2" | 1/2" | 1.38" | 2.25" | 2.50" | 0.15 |
| 3/4" | 3/4" | 1.50" | 2.50" | 3.00" | 0.20 |
| 1" | 1" | 1.75" | 3.00" | 3.50" | 0.30 |
| 1 1/4" | 1 1/4" | 2.00" | 3.50" | 4.00" | 0.40 |
| 1 1/2" | 1 1/2" | 2.25" | 4.00" | 4.50" | 0.50 |
| 2" | 2" | 2.50" | 4.50" | 5.00" | 0.65 |
| 2 1/2" | 2 1/2" | 3.00" | 5.00" | 6.00" | 0.85 |
| 3" | 3" | 3.50" | 5.50" | 7.00" | 1.10 |
| 4" | 4" | 4.00" | 6.00" | 8.00" | 1.40 |
